Electrical

Goodman Rollout Switch

A furnace limit switch (also called a high limit switch or fan limit switch) is a safety and control device that monitors the air temperature inside the furnace. It ensures the furnace operates safely by: Turning the blower fan on and off at the right temperatures. Shutting off the burners if the furnace overheats. Essentially, it prevents damage to the furnace and protects against fire hazards caused by excessive heat.

Rollout Switch

A furnace limit switch (also called a high limit switch or fan limit switch) is a safety and control device that monitors the air temperature inside the furnace. It ensures the furnace operates safely by: Turning the blower fan on and off at the right temperatures. Shutting off the burners if the furnace overheats. Essentially, it prevents damage to the furnace and protects against fire hazards caused by excessive heat.

60 Amp Air Conditioning Disconnect

The Eaton G8064 is a non-fusible pull-out disconnect device designed for air-conditioning and heat-pump condensing units. It provides a visible means of disconnect (you can physically pull out the module to disconnect power) so that service technicians have a clear “off” state for maintenance. It is housed in a weather-resistant outdoor enclosure (typically NEMA 3R rain-proof) making it suitable for wall-mount near an outdoor A/C unit. According to one distributor:

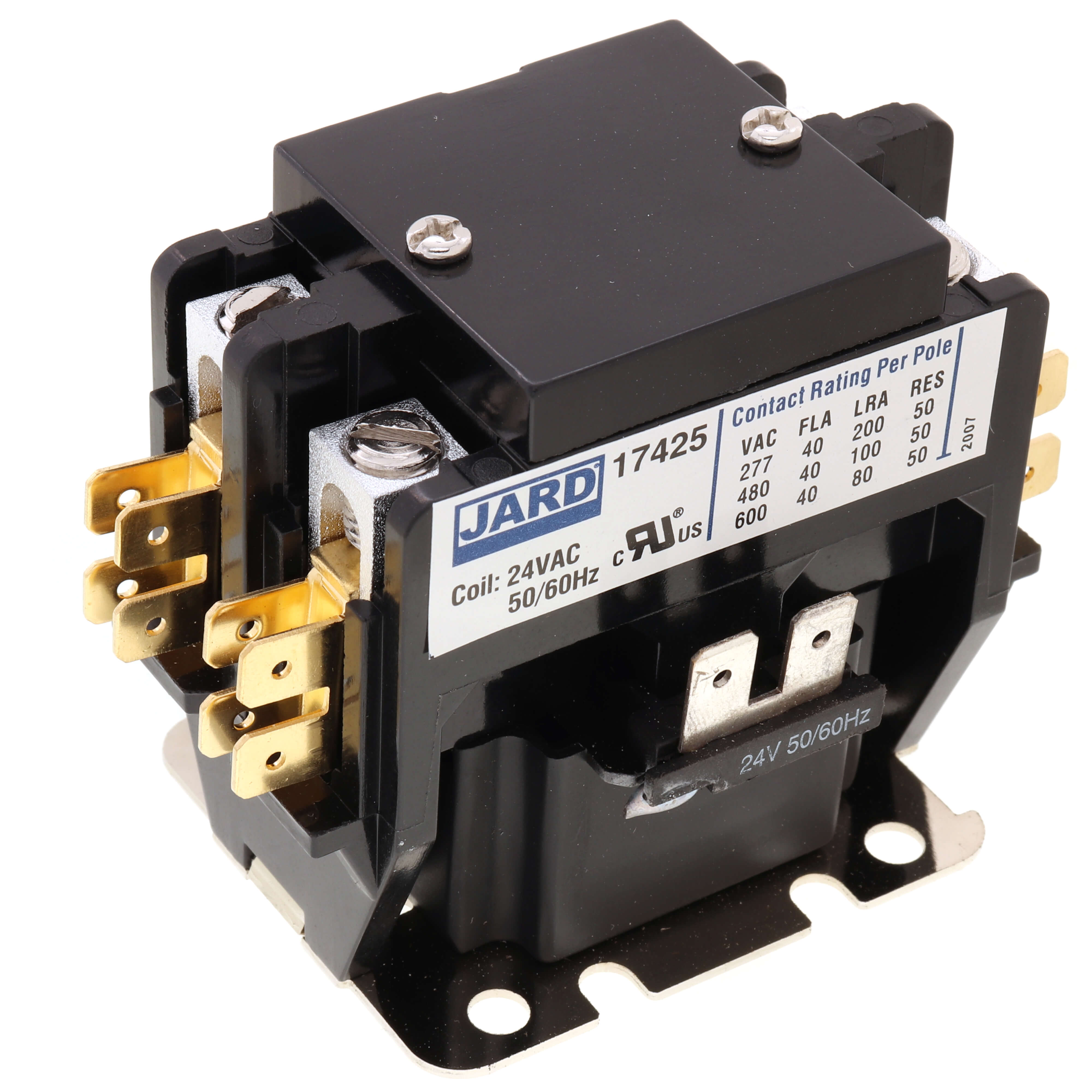

Definite Purpose Contactor w/lugs

The JARD 17425 is a 40-amp, 2-pole definite purpose contactor designed for use in refrigeration, air conditioning, and electric heating systems. Manufactured by JARD (a brand under Mars), this contactor offers a cost-effective solution for HVAC applications. Its universal mounting base allows for easy replacement of most contactor brands, and power connections can be made with either screws and quick connects or lugs and quick connects, depending on the style.

General Purpose Fan Relay

The Tuttokool GR90-380 is a general-purpose electromechanical fan relay designed for HVAC and refrigeration applications. It facilitates the switching of fan motors and other equipment by controlling the flow of electrical current based on control signals, ensuring efficient operation and protection of connected components.

24-Hour Electromechanical Defrost Timer

The Intermatic DTAV40 series is a 24-hour electromechanical defrost timer designed for use in commercial refrigeration systems, such as walk-in coolers and freezers. It automates the defrost cycle by controlling the compressor's operation, ensuring efficient ice removal from evaporator coils.

Unit Bearing Cast Iron Motor

The JARD 15411 is a unit bearing, cast iron motor, often used in refrigeration, HVAC, and small fan/blower applications (e.g. refrigerators, freezers, food & beverage coolers, vending machines, display cases). combustiondepot.com +3 SupplyHouse.com +3 Meier Supply +3 “Unit bearing” means the motor includes its bearing (sleeve type) integrated into the unit, so no external bearing support is needed. packardonline.com +3 2jsupply.com +3 SupplyHouse.com +3 The housing or frame is made of cast iron, which offers durability, rigidity, and good thermal mass. Galco +3 Voomi Supply +3 combustiondepot.com +3 It uses a shaded-pole design (common for small fractional-power motors) for single-speed, low-torque operation. Meier Supply +2 PartsHnC +2 The motor is encapsulated or enclosed in a way to reduce exposure to airflow or contaminants; specifically, it is labeled “TEAO” (Totally Enclosed Air Over) in some specs. marsdelivers.com +2 2jsupply.com +2 It has a clockwise (CW) rotation orientation (when viewed from the shaft end) for its standard version. Ferguson +3 marsdelivers.com +3 SupplyHouse.com +3 It is often sold with universal mounting / through-bolt mounting options, making it adaptable to various installations. PartsHnC +3 2jsupply.com +3 Meier Supply +3 The insulation class is modest (Class A in some specs), appropriate for a small, low-power motor. marsdelivers.com +2 2jsupply.com +2 It is rated for ambient use (with a given maximum ambient temperature), and includes some built‑in thermal protection in some catalogs. marsdelivers.com +2 United Refrigeration +2

Furnace Air Pressure Switch

A furnace pressure switch is a safety and control device that monitors air pressure (often negative or slight vacuum) in the furnace’s venting / flue / inducer system to ensure proper airflow before allowing ignition. If the airflow (draft) is insufficient — due to blocked venting, faulty inducer motor, or leaks in tubing — the pressure switch will prevent the furnace from igniting or will shut it down mid-cycle. It is typically mounted near the inducer motor or in the blower compartment. It connects via small flexible tubing to sense pressure (vacuum or slight positive pressure) created by the inducer blower. Its internal mechanism (diaphragm, spring, contacts) responds to changes in pressure, opening or closing electrical contacts in the furnace control circuit. In many furnace systems, the control board uses the switch’s state (open/closed) as a gating condition: the blower must achieve the required pressure before ignition is permitted. (If the pressure switch does not close, the furnace will lock out for safety.) How to Choose Best HVAC Systems +3 A. O. Smith +3 Aire Serv +3 Because this part is in the safety chain, it must be correctly rated and matched to the furnace’s required pressure setpoints (i.e. the specific “close on vacuum” value). Thus, the pressure switch helps prevent combustion gases (e.g. CO) from being forced into the living space when venting is blocked or compromised.

LIL POPPER 3 amp Circuit Breaker

SUPER BOOST Relay & Hard Start Capacitor

A “Super Boost” relay + hard start kit (often under Supco’s Super Boost / SPP series) is an accessory used with single-phase compressors (especially in HVAC systems) to assist the compressor during startup. The kit typically combines: A start capacitor sized to give extra starting torque, and A relay or PTC / EPR (Positive Temperature Coefficient / Electronic Potential Relay) to remove the start capacitor from the circuit once the compressor is up to speed. The purpose is to help “hard start” or “weak start” compressors, especially under low-voltage conditions or when the motor is under load (e.g. high ambient temperature). The Super Boost kits are marketed to provide high torque boost (for example “500 % torque increase” in some models). Edmondson Supply +2 supco.com +2 They are designed for “two-wire” installation (across the run capacitor terminals) in many PSC (permanent split capacitor) motors, and are UL-recognized.

Voltage Protector 220V

Heavy‑duty voltage protector for refrigerators, air conditioners (up to 36,000 BTU), single‑phase compressors & motors. Works on 208/220 V, 50/60 Hz.

OVER FLOW SWITCH

The CS-3 Condensate Safety Overflow Switch is designed to provide reliable protection against water damage in HVAC systems. It detects rising water levels in the primary or auxiliary drain pan and automatically shuts down the air conditioning unit to prevent overflow.

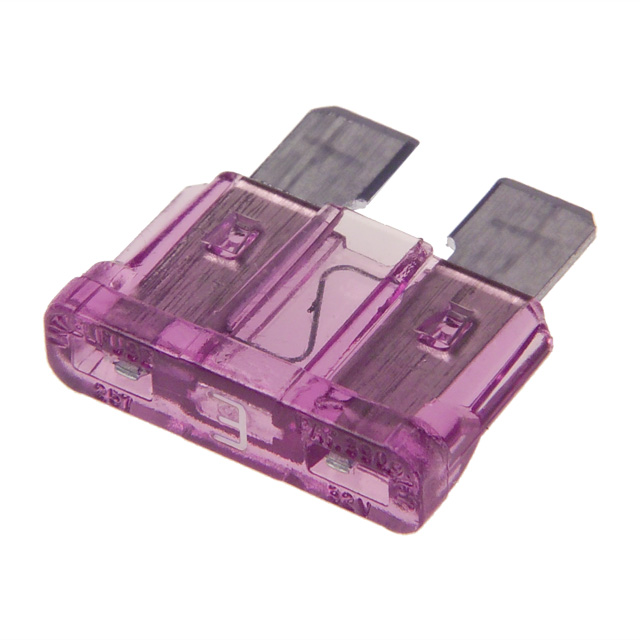

ATC Car Fuse

A 3 Amp fuse is a protective electrical component designed to safeguard circuits and electrical devices from overcurrent conditions. It interrupts the flow of electricity when the current exceeds 3 amps, preventing damage to equipment and reducing fire risk. Commonly used in low-power electronic devices, lighting circuits, and automotive applications.

90-340 L36-901 DPDT Type 91 Relay

Heavy-duty DPDT relay used for general-purpose switching in HVAC systems and appliances. The White-Rodgers 90-340 is a Type 91 relay offering reliable control in heating, ventilation, and air conditioning equipment.

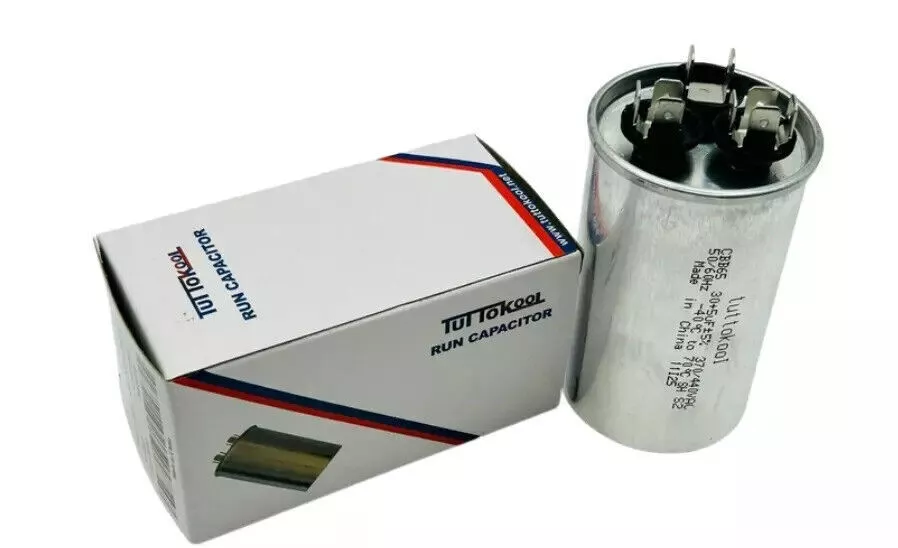

40+5 MFD 440V Dual Run Capacitor

Tuttokool dual run capacitor, 40+5 microfarads (µF) at 440V, designed for HVAC systems to support both compressor and fan motor operation in a single unit.

RUN CAPACITOR 12.5/440V HARTLAND

MULTI-PURPOSE 370 OR 440VAC

CR7.5x440 Round 7.5 MFD 440V

7.5 microfarad (MFD) round run capacitor rated for 440 volts. Designed for continuous-duty operation in HVAC systems, supporting fan motors, compressors, and blowers.

TRANSFORMER 50VA

Closed construction Multi-mount with brackets Power 50/60Hz Class B insulation system Class 2 transformers UL Recognized Component

OVAL RUN CAPACITOR

FLOW SWITCH RED AIR HANDLER WS‑1 CS-2 24VAC

.The Asurity WS‑1 Wet Switch Flood Detector is a solid-state moisture detection device designed to help prevent flooding caused by condensate overflow in HVAC systems. Installed in or near condensate drain pans, the sensor detects the presence of water and shuts down the connected HVAC equipment to prevent property damage. It is commonly used in residential and commercial HVAC applications to provide early warning and automatic system protection against leaks and water accumulation.

INTEGRATED IGNITION CONTROL

BOARD CONTROL

50-5µf x 440V Dual Round Run Capacitor

No induction winding structure of metallic polypropylene membrane Credible insulation performance, super electric performance with ability of self-heating and safety explosion proof equipment Excellent heat dispersion, small volume, wide range of capacity, low loss stable capacitance With stand impact current, strong overload performance and long live span Suitable for starting and operating 50Hz or 60Hz AC single phase electro-motor UL Listed – E477014

Tuttokool Run Capacitor Round 10 µF –40/85°C

The Tuttokool Run Capacitor Round 10 µF is designed for continuous duty in HVAC systems, motors, and compressors. It ensures stable performance, high reliability, and extended motor life under varying operating conditions.

Tuttokool Run Capacitor Round 7.5 µF –40/85°C

The Tuttokool Run Capacitor Round 7.5 µF is designed for continuous duty in HVAC systems, motors, and compressors. It delivers stable and reliable electrical performance across a wide operating temperature range.
